Virtualenv in PyCharm

Run below code, we can check what package we have under current environment.

import subprocess

p = subprocess.Popen(['pip', 'list'], stdout=subprocess.PIPE, stderr=subprocess.PIPE)
out, err = p.communicate()
print out

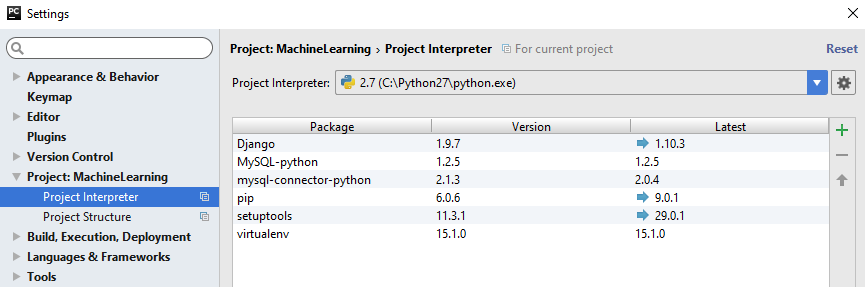

In PyCharm -> Project Interpreter -> list box Project Interpreter, here are all the python environments:

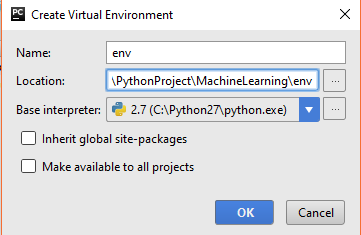

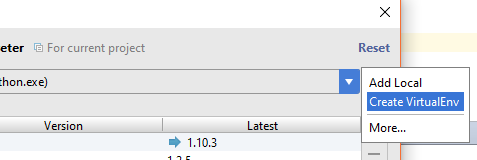

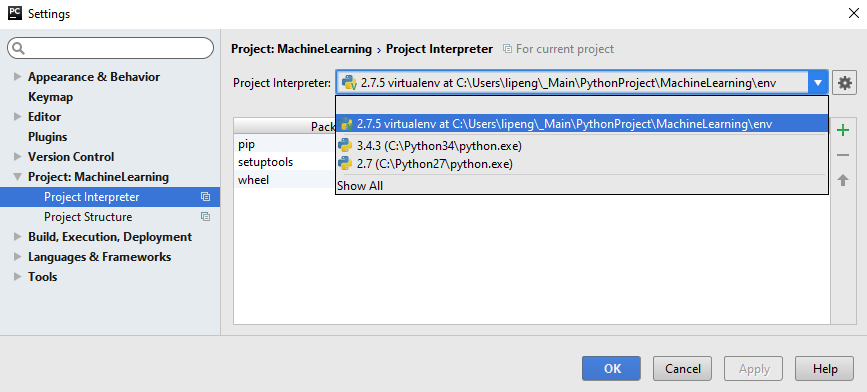

Under system button, select Create VirtualEnv


Now, we have new virtual environment.

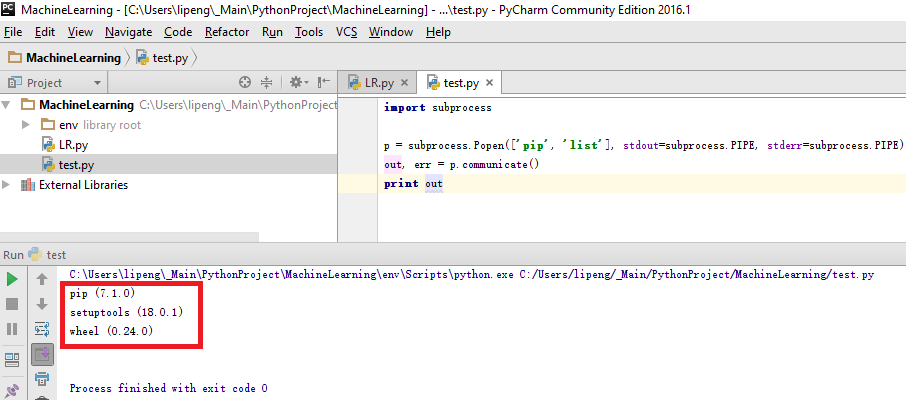

Let’s try the code again. We see the package list changed.

Not ended yet….

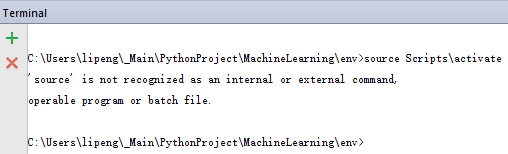

Let’s open terminal console in PyCharm and try virtualenv activate command. Unfortunately, it shows that it couldn’t find source command, which is different from Linux.

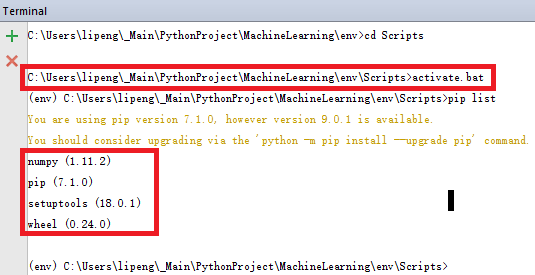

To activate virtualenv in Windows, we end up with running Scripts\activate.bat command in env folder.

Simple Linear Regression

I’m learning machine learning these days. Here let me write down the note for this.

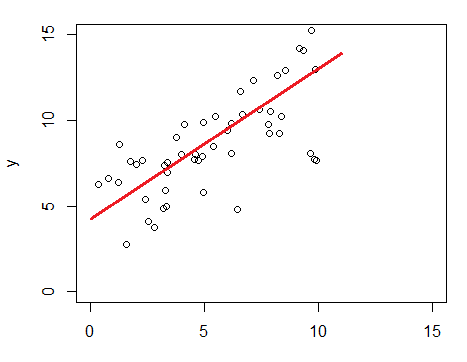

Suppose we have m training points training_set in x-y coordination, and we want to find the best line fit for these points .

Since it is the simplest line, we can define the line function, and call it hypothesis:

A way to measure how well a line fit these points is least square mean. And we call it loss function:

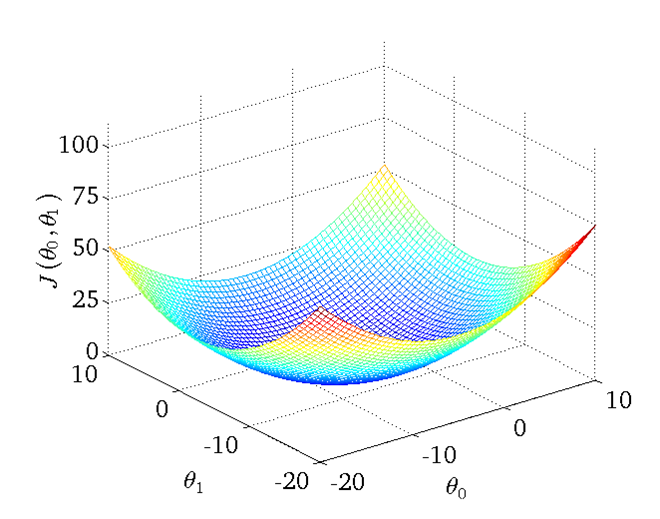

Now, the problem turns to find the pair which the loss function has the minimum value. As said by Andrew NG, the fortunate thing is that the loss function of linear regression are all bowl shape, which mean it always has a extreme value.

One way to minimize the loss function is to use gradient descent algorithm. The basic idea is to let the point on the surface go through gradient direction, in this way, it will finally reach the extreme value. Partial derivative functions for loss function:

After we got the partial derivative function, we do below until loss function is less than boudary

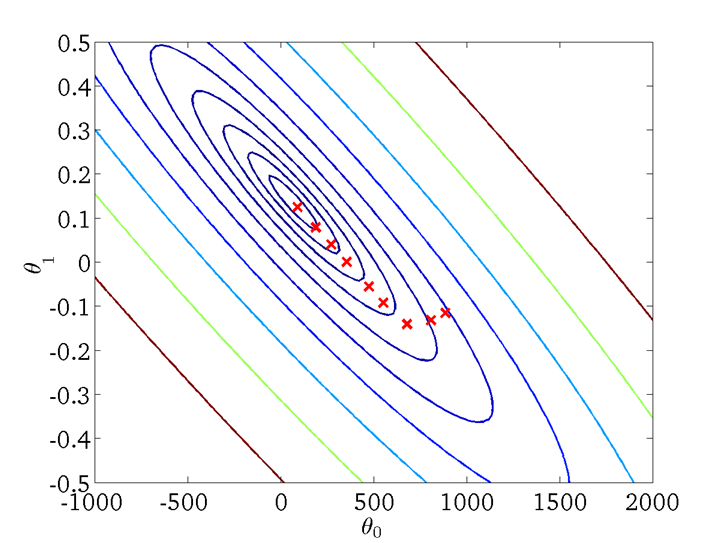

When the loss function is getting close the extreme value, we can see the pair is moving to the extreme value from the gradient direction.



Example of Gradient Descent

Let’s talk about this function:

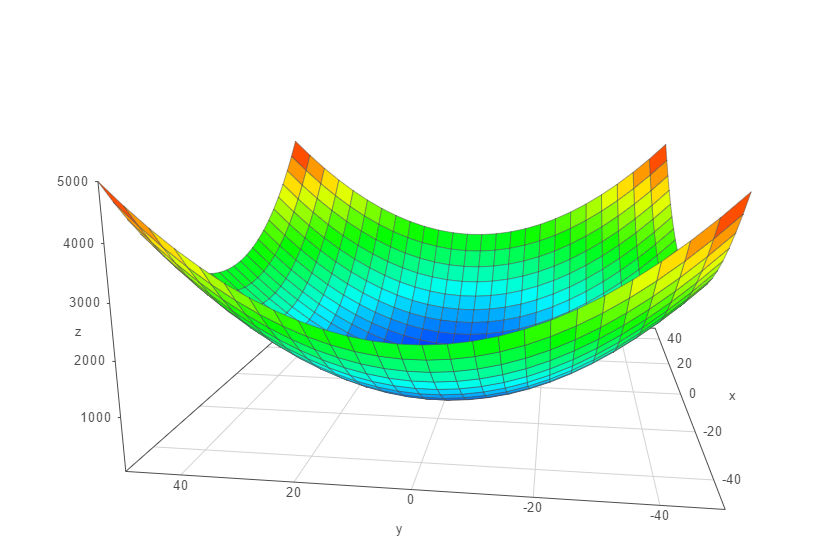

It has shape like this:

Obviously, it has extreme point (0, 0, 0). Let’s use gradient descent to get the extreme point.

Calculate the partial derivative:

Then, let’s take any point in (x, y), and run like below. Lambda is a tiny value, which controls how fast P goes to the extreme value.

After we ran, we got the below iteration:

0 (x, y): 1.0, 5.0
1 (x, y): 0.803883864861816, 4.01941932430908
2 (x, y): 0.6077677297236319, 3.0388386486181598
3 (x, y): 0.41165159458544787, 2.0582579729272394
4 (x, y): 0.21553545944726385, 1.0776772972363193
5 (x, y): 0.019419324309079833, 0.09709662154539911
6 (x, y): -0.1766968108291043, -0.8834840541455209
7 (x, y): 0.01941932430907986, 0.09709662154539922
8 (x, y): -0.17669681082910432, -0.8834840541455209
9 (x, y): 0.01941932430907986, 0.09709662154539922
(x, y): -0.17669681082910432, -0.8834840541455209

It shows that it iterates close to the extreme value (0, 0), but it go around (0, 0) when it arrives.

My java code for this gradient descent algorithm:

public static void main (String[] args) throws java.lang.Exception{
    // your code goes here
    System.out.println(Math.pow((26 * 26 + 46 * 46), -0.5));
    double x = 1, y = 5, delta = 1;
    for (int i = 0; i < 10; i++) {
        System.out.println(i + " (x, y): " + x + ", " + y);
        double tmp = Math.pow((x * x + y * y), -0.5);
        double x2 = x - delta * x * tmp;
        double y2 = y - delta * y * tmp;
        x = x2;
        y = y2;
    System.out.println("(x, y): " + x + ", " + y);

code on github
